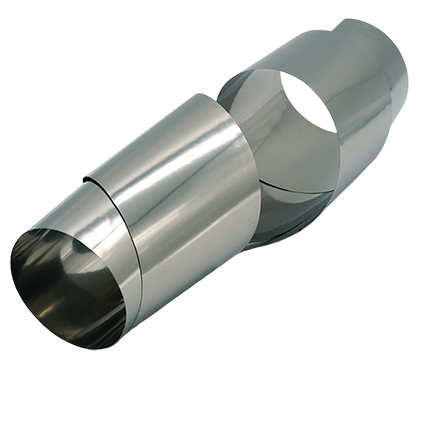

Nitinol Foil & Strip

Seabird's nitinol foil and strip provide outstanding superelasticity, shape memory effect, and excellent fatigue resistance in ultra-thin gauges. Perfect for medical devices, sensors, and micro-actuators, they enable miniaturization and high-performance design in critical applications.

Connect with an Expert
Nitinol Foil & Strip Featured Image
Nitinol Foil & Strip

Specifications

Parameter Specification
Thickness 0.03 mm ~ 1.0 mm
Af Temperature -30 ~ 120°C
Tensile Strength 550 ~ 1900 MPa
Elongation 10% ~ 20%
Surface Condition Cold Rolled Surface, Polished Surface
Product Description Used in the electronics industry for manufacturing flexible circuit boards, in the packaging industry for heat-sealing tapes, and in the textile field to provide fabrics with temperature-responsive functionality.
Foils and strips are suitable for high-precision electronic applications. The tensile strength varies widely depending on the processing condition.
